Power Factor Correction PFC Low power consumption and compatible with various voltages
Top DSP, High dynamic range, versatile package, with integrated
4 input channels with physical analog, digitalAES3 Connectors and Dante connection, providing the most great flexibility
Input and Output IIR, FIR, IIR+FIR equalizer and raised cosine filter
Full set of limiters: peak, RMS Voltage, RMS Current and TruePowerTM sex
Full protection circuit: AC voltage is too high/too low; fault signal (clipping, very high frequency, long-term RMS) DC; Thermal; Short circuit; Mute on/off

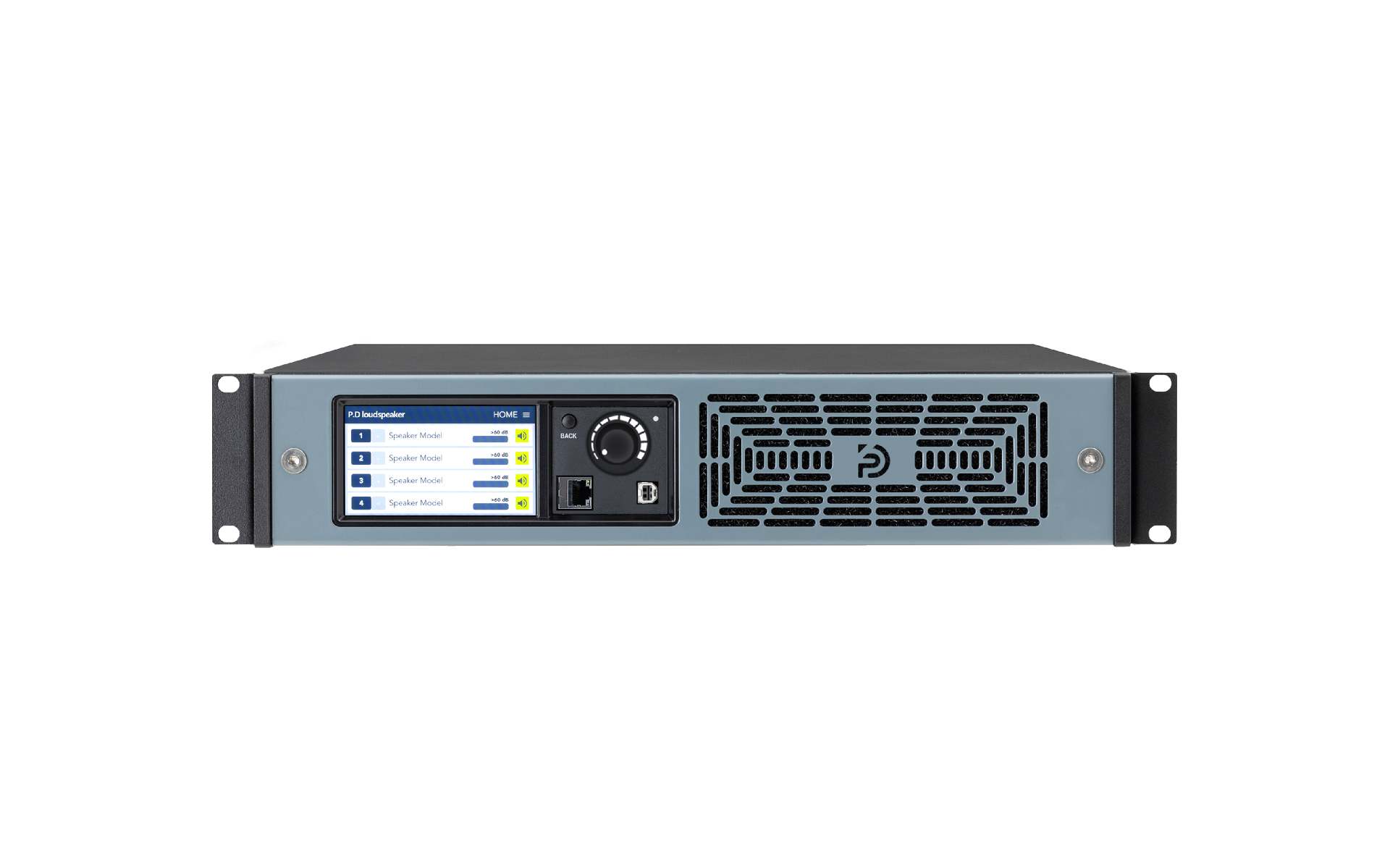

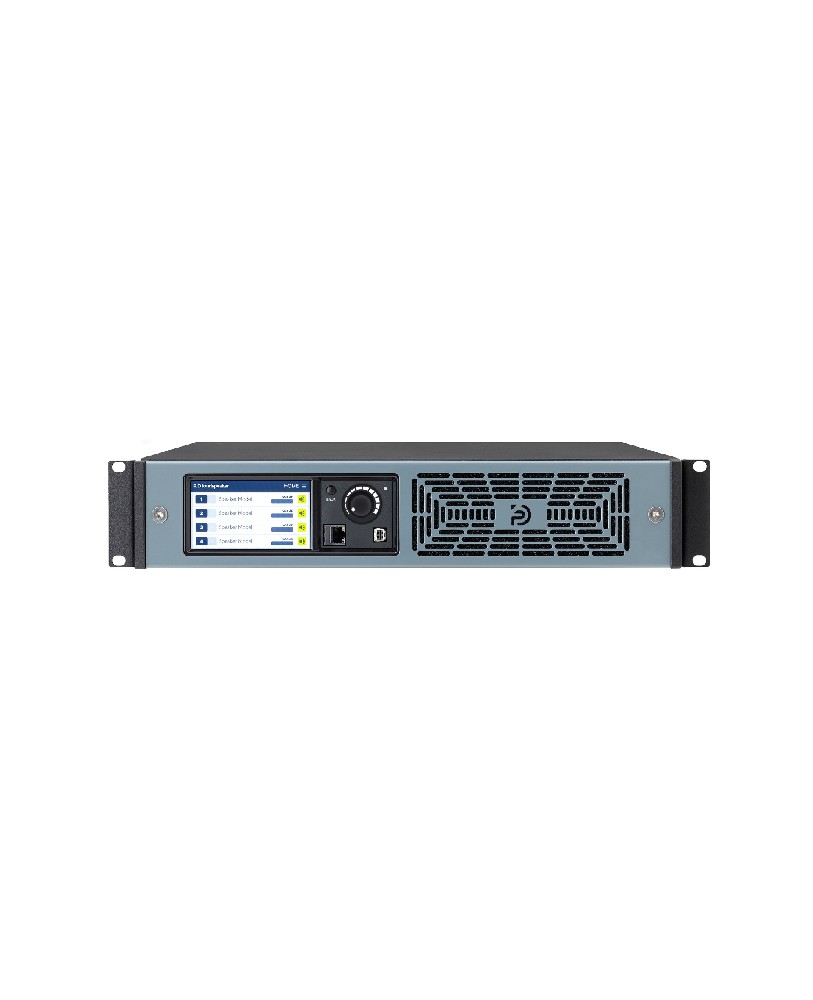

D series is a versatile amplifier platform that includes comprehensive signal processing, 2048-tap FIR Filter, damping coefficient control, dynamic equalizer, simulation, AES3, Dante/AES67 Input and output, and a bright 4.3-inch IPS Display.
Equipped with patent PFC The power supply can be operated anywhere in the world and has 750 J Energy storage Delivers consistent performance.
4 channels, 2 U The amplifier provides ample power and voltage to operate even with 8 or 160 Ω loads. High SPL, Each channel can provide up to 3000 W of power.
By world famous Powersoft Factory OEM, compatible Armonía Plus Software, amplifier can pass Armonía Plus It can be controlled remotely or locally through the display interface.Available functions include preset recall, gain, delay and mute to suit all the most common end-use applications. User requirements.
| Model No | D1400-4V | D1800-4V |
| Output power (single channel module) | 8Ω1400W，4Ω2000W，2Ω2000W | 8Ω1800W，4Ω2700W，2Ω2000W |
| Output power (bridge module) | 8Ω4000W，4Ω4000W | 8Ω5400W，4Ω4000W |
| Maximum output voltage | Peak 180V | |
| Maximum output current | >55A Peak | |
| AC mains power supply | Have PFC , SRM Universal Regulator Switching Mode | |
| Operating Voltage | 90V–264V AC@50-60Hz | |
| Frequency response | 20Hz–20kHz(±1dB) | |
| Crosstalk separation | -75dB | |
| THD+N | <0.1%(Usually<0.05%) | |
| IMD | <0.1%(Usually<0.05%) | |
| Input resistance | 20KΩBalance | |
| AD converter | 24 Bit 48kHz Tandem™ Architecture,125dB Dynamic range-0.005%THD+N | |
| DA converter | 24 Bit 48kHz Tandem™ Architecture,117dB Dynamic range-0.005%THD+N | |
| Sample Rate Converters | 24 Bit 96kHz,140dB Dynamic range-0.0001%THD+N | |
| Internal accuracy | 32 Bit floating point | |
| Lurking | 2.5ms fixed latency architecture | |
| Crossover | Frequency division Linear Phase,Butterworth,Linkwitz-Riley, Bessel:6dB/oct up to 48 dB/oc | |
| Delay | 2 seconds (input) + 100 milliseconds (output) time calibration | |
| Damping control | Damping control Active damping control™ Dynamic measurement of resistance | |
| Input connector | 4XLR-F Analog signal input,2XLR-FAES3 singnal input, 2 EtherCon（4xDante/AES3） | |
| Network Connectors | 2 RJ45 port | |
| Output connector | 4 speakON NL4 | |
| High | 88.9mm-3 1/2″ | |
| Width | 483mm-19″ | |
| Depth | 381mm-15″ | |
| Weight | 11.3kg-24.9lb | |
