20 signal inputs
12 signal outputs
10.1 inch capacitive touch screen 1280x800Resolution
9 out of 100mmElectric hair clippers
Support engineering lock function
4 custom buttons, you can set the button function according to your needs
2-way mute grouping, support 1-button control of multi-channel mute
Built-in effects include 2 echo modules and 1 reverb module
Wired or wireless network connection remote control function
Equipped with a serial port central control interface to support third-party intelligent central control
1 set of 2*2 sound card modules supports recording and playback function
16-segment high-precision master output level meter
USBStereo playback and recording functions, supportMP3,AAC,WAV
APEPlay audio sources in other formats

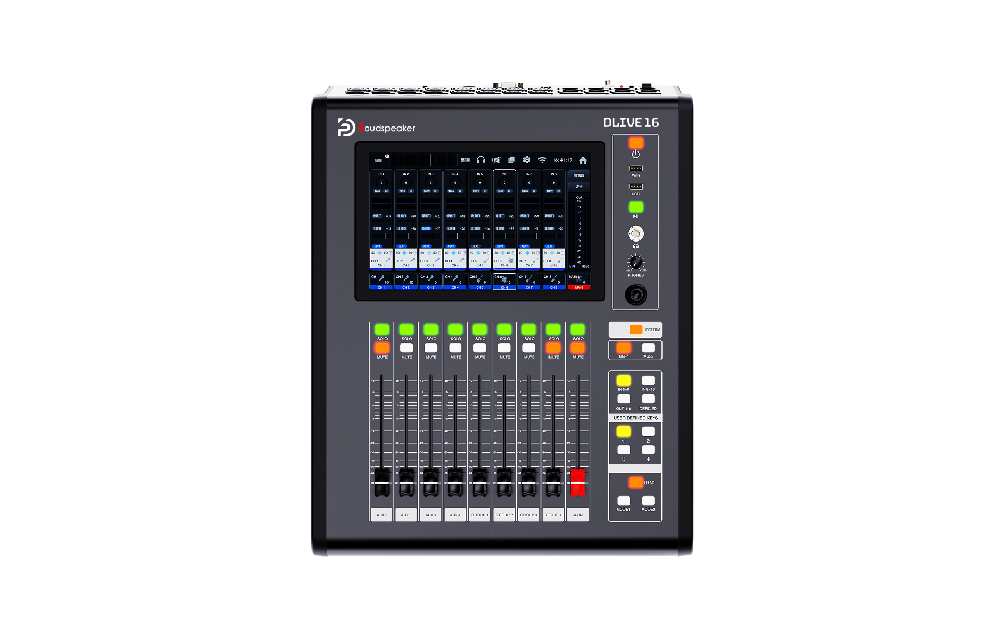

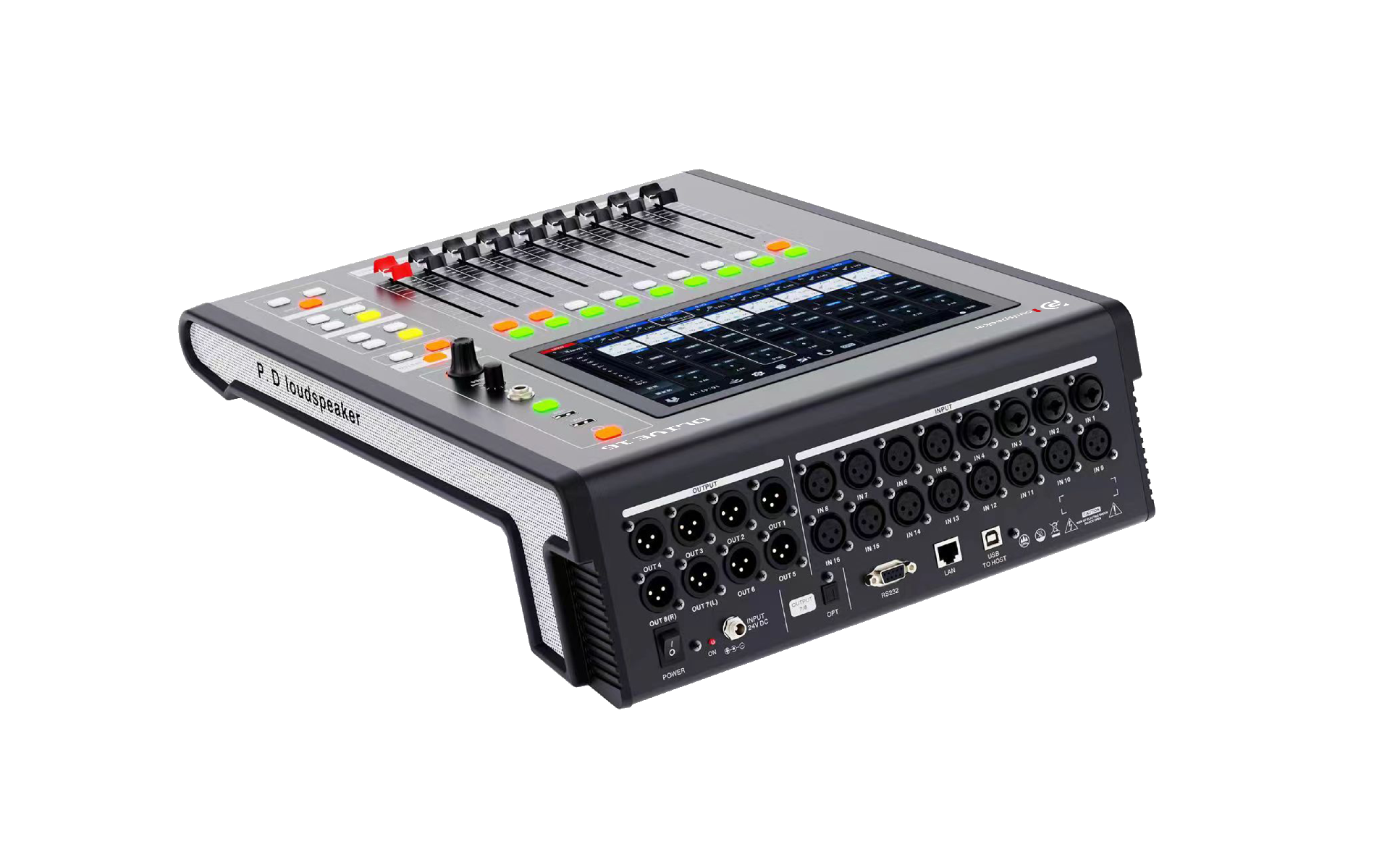

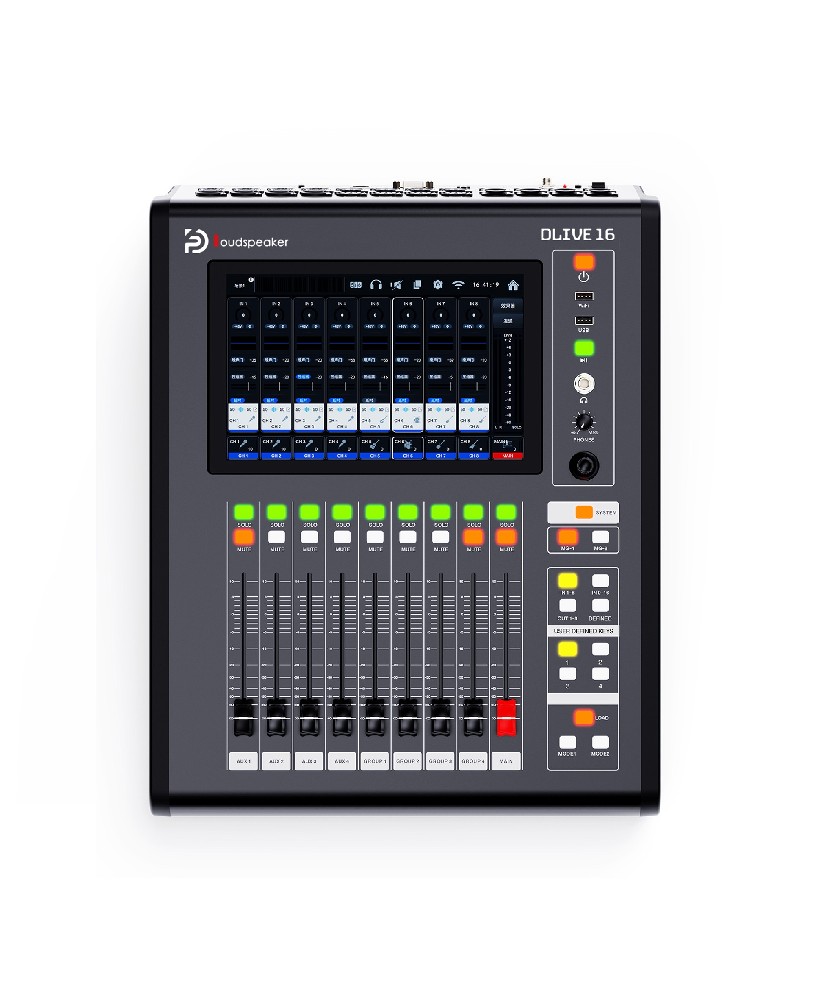

PD loudspeaker Mixer Dlive16——20Channels,electric faders,large touch screen,USB Interface,every function you need for live mixing is available.
PD loudspeaker Mixer Dlive16,The design is different from all the simillar products on the market.LINUX The system,not thr Android system,confirms the machine's efficiency and stability.At the same time,it adopts the expertise of digital mixers. All settings are available,including the most important motorized faders.You can also use WiFiRemote control mixer,support wired or wireless network connection control function,support PCEnd,IOS Terminal,Android terminal control;equipped with serial portThe central control interface supports third-party intelligent central control;
10.1"capacitive touch screen 1280*800Resolution;full English operating system,(Chinses operation can be customized).11buses,4 of which are mono AUX bus,stereo group buses,2 effect buses and 1 main output line;analog input channels have gain,noise gate,compressor,phase,48V,Audio and Video high pass,4-band equalizer,200msDelay,automatic mixing and 4-level feedback suppression functions,digital input channels have balance,4-band equalization and other functions;output channels have low pass,4-band EQ,200msDelay,2 31segments GEQ Module insertion and other functions;with 4 custom buttons,the button functions can be set according to needs;support enfineeringLock function;studio-level sound,multiple effects,and full dynamic processing make DlibeTune in with ease.
| 型号 | DLIVE 16 |
| Processing channels | |
| Input processing channels | 6 microphone or line inputs, 1 stereo USB flash drive playback, 1 stereo USB sound card input |
| Output processing channels | 4 AUX, 4 GROUP, 1 MAIN, 1 stereo monitor, 1 stereo USB flash drive recording or USB sound card output |
| Output processing channels | 2, mono, with echo and reverb effects |
| Output processing channels | 2 31-segment GE0 modules, can be inserted into any output channel |
| Scene files | Can save up to 50 groups |
| Effect library files | Can save up to 100 groups |
| Signal processing capabilities | 40-bit floating point processing, 48kHz sampling rate |

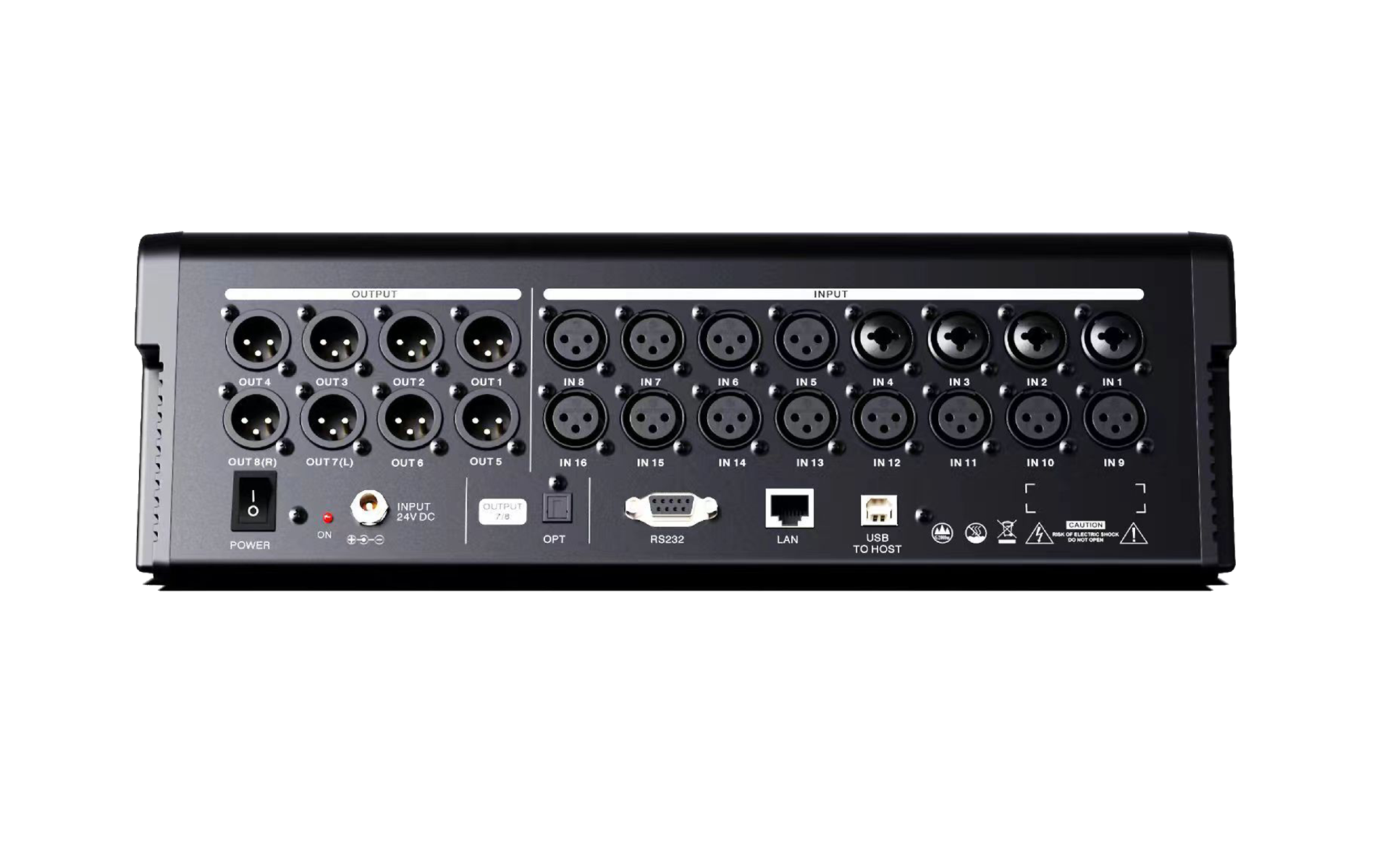

| Connectors | |
| Microphone/line input XLR connector | 16 microphone or line inputs |
| XLR output connector | 8 |
| Optical fiber connector | 1, OUT7&8 to digital signal output |
| Monitor headphone output XLR connector | 1, stereo |
| USB connector | ear panel: 1, 2-input 2-output sound card interface Front panel: 2, can connect to USB stereo recording and broadcast, connect to WiFi module for wireless control |
| Serial port | RS232 DB9 serial port, baud rate fixed 115200bps |
| Network port | Interface R1-45, format IEEE802.3, level 10BASE-T/100BASE-TX, NETWORK |
